Rincón Plume Model · ReefRoamer

Inputs

Build a scenario

River source Hourly rainfall, mm comma-separated

Duration, hours Current speed, m/s Bearing, flowing toward °

Model output

Scenario results

Modeled plume TSS at reef receptors

Elapsed hours on the horizontal axis; modeled TSS (mg/L) on a log(1 + TSS) vertical scale.

Tres PalmasSteps BeachBlack Eagle Marina

Read the hourly model values

Hourly discharge and modeled plume TSS by reef receptor
Hour	Discharge, m³/s	Tres Palmas, mg/L	Steps Beach, mg/L	Black Eagle Marina, mg/L

Assumptions in this run

Mapped example

How the modeled plume moves

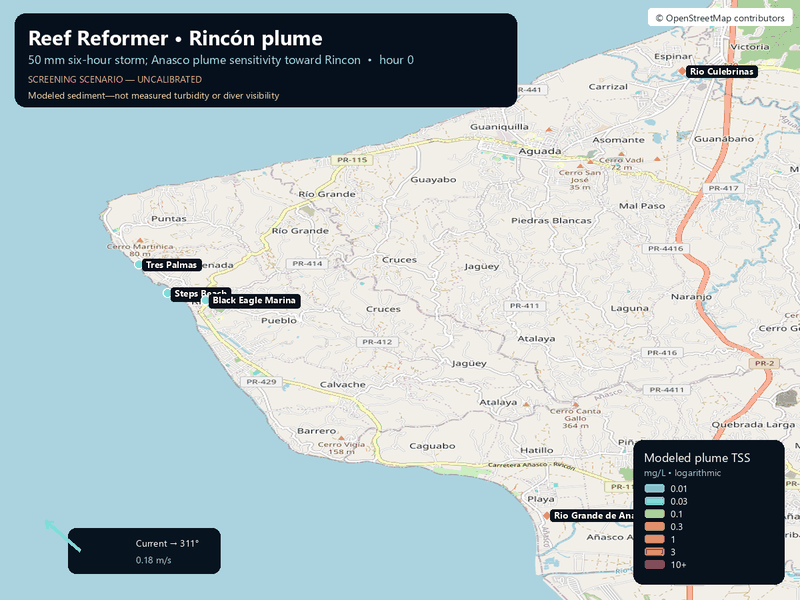

The map animates the included 50 mm Añasco sensitivity scenario toward Rincón. It is a rendered model example, not live current or water-quality data.

Animated map of the modeled Añasco sediment plume moving toward three Rincón reef receptors at 12, 24, and 48 hours

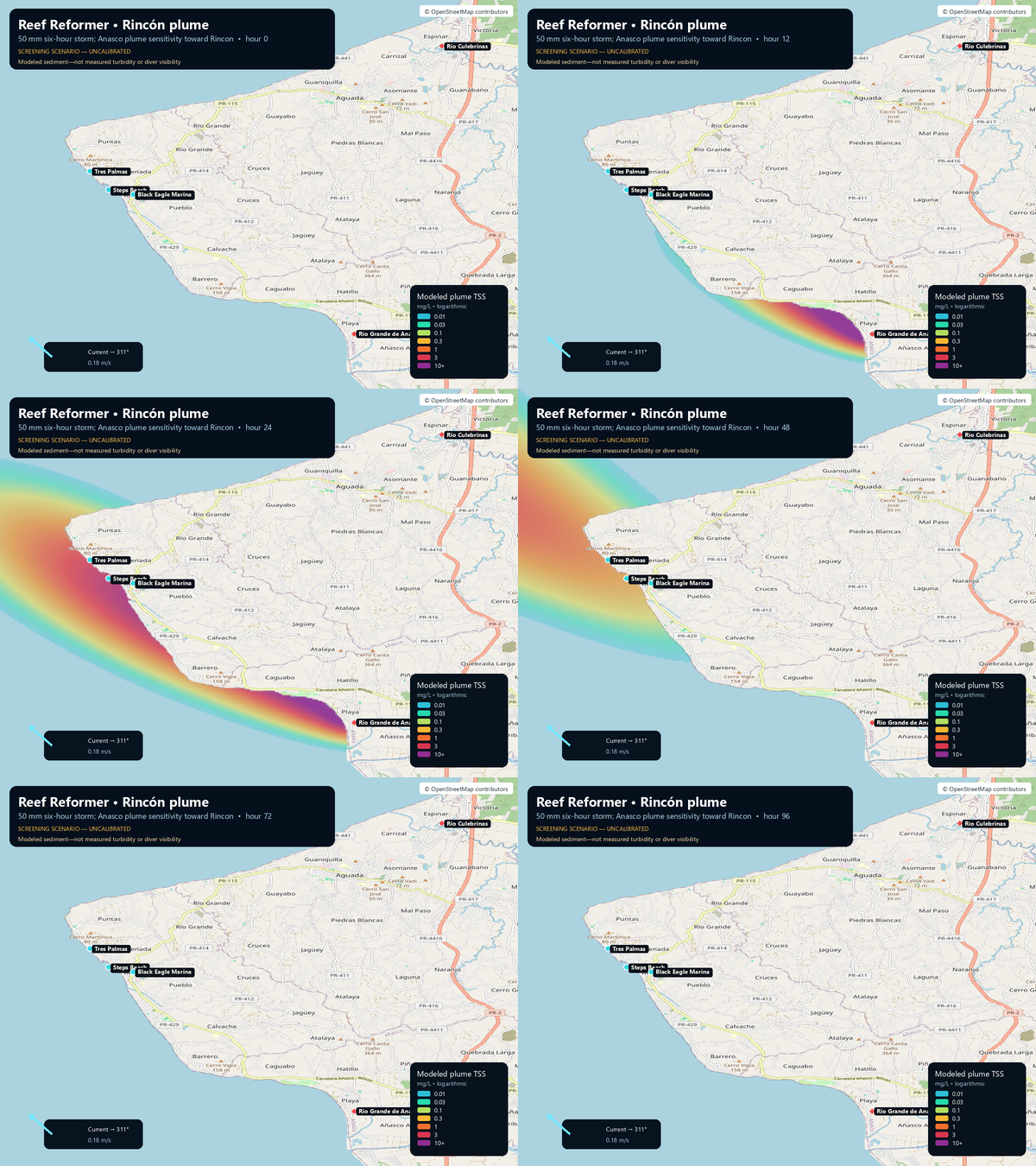

Open the full-resolution time-step map →

How it works

Established screening methods, joined transparently

SCS Curve Number converts cumulative rainfall into excess rainfall.
A triangular unit hydrograph routes that volume into discharge.
A sensitivity rating curve estimates suspended-sediment flux.
Hourly midpoint releases move through a constant-current Gaussian plume.
Reef values report modeled TSS. The optical proxy is not presented as diver visibility.

Read model provenance and limitations →
